Flanged Ball Valve
Flanged Ball Valve Flanged Ball Valve Flanged Ball Valve
Request a Quote

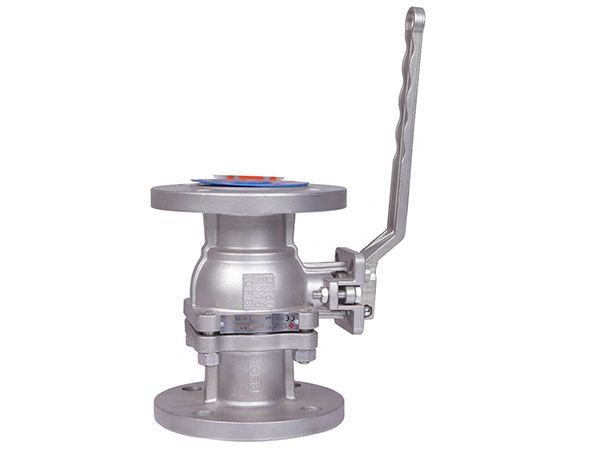

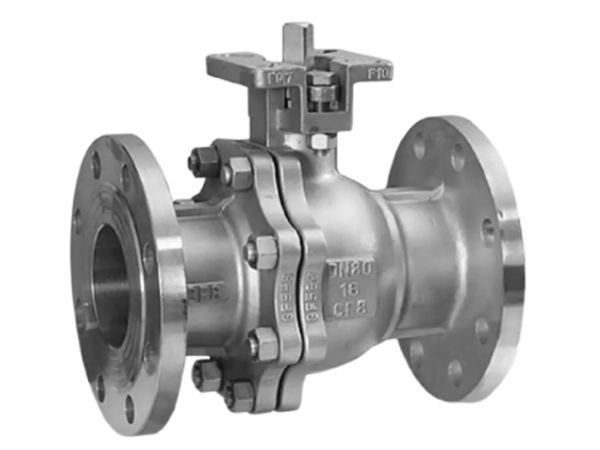

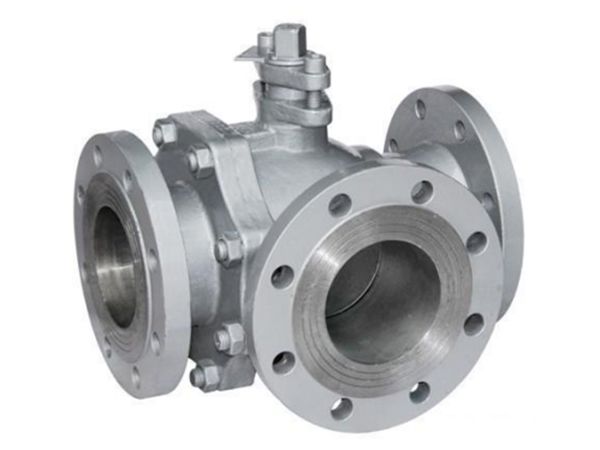

Flanged Ball Valve

Applications

Flanged ball valve can be used in various situations, including water conveyance pipelines, heating distribution pipelines, high-temperature and high-pressure media conveyance pipelines in steel mills, and petroleum pipelines.

Basic Information
Size Range
DN15-DN200
Temperature Range T
0-100℃
Maximum Allowable Operating Pressure PN
1.0-2.5Mpa
Pressure Rating
1.5-3.75Mpa (Shell)
1.1-2.75Mpa (Seal)
Applicable Media
Freshwater, seawater, air, weak acid-base, and so on.
Features
  • Wear-resistant: The valve core is made of spray welding of alloy and the O-ring is made of overlay welding of alloy, permitting minimal wear during valve operation (with a hardness coefficient of 65-70).
  • Excellent sealing performance: Flanged ball valves are manually ground to ensure a perfect fit between the valve core and the O-ring, providing reliable sealing performance.
  • Light operation even when external forces exceed the pre-tension force of the spring.
Materials
No. Part Materials No. Part Material
1 Valve Body and Valve Bonnet CF8, CF8M, CF3, CF3M, WCB 5 Packing FTFE, Graphite
2 Valve Core CF8, CF8M, CF3, CF3M, WCB 6 O-Ring PTFE
3 Valve Seat FTFE, PPL 7 Bolts Stainless Steel, 35CrMoA
4 Valve Stem CF8, CF8M, CF3, CF3M, 2Cr13 8 Nuts Stainless Steel, 45#, 35CrMoA
Specifications
Specifications

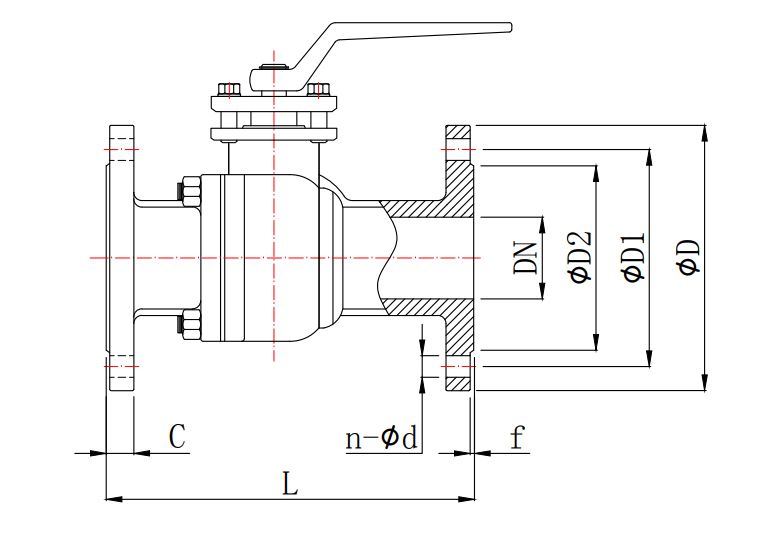

Size L ØD ØD1 ØD2 C f n-Ød
DN15 130 96 66 46 14 2 4-Ø14
DN20 140 106 76 64 14 2 4-Ø14
DN25 160 116 86 66 14 2 4-Ø14
DN32 166 136 100 76 16 3 4-Ø18
DN40 180 146 110 85 18 3 4-Ø18
DN50 200 160 126 100 18 3 4-Ø18
DN65 220 180 146 118 20 3 8-Ø18
DN80 260 196 160 132 20 3 8-Ø18
DN100 280 216 180 165 20 3 8-Ø18
DN125 320 246 210 186 22 3 8-Ø18
DN150 360 280 240 210 24 3 8-Ø22
DN200 400 336 296 266 26 3 12-Ø22
Certifications
Item Standard Optional Standard
Design & Manufacture GB12237 BS5351, ANSI B16.34
Face to Face Dimension GB12221-89 ANSI B16.10
Flange Connection JB/T-79 ANSI B16.5
Valve Test JB/T-9092 API598
