Control Ball Valve
Control Ball Valve Control Ball Valve Control Ball Valve
Request a Quote

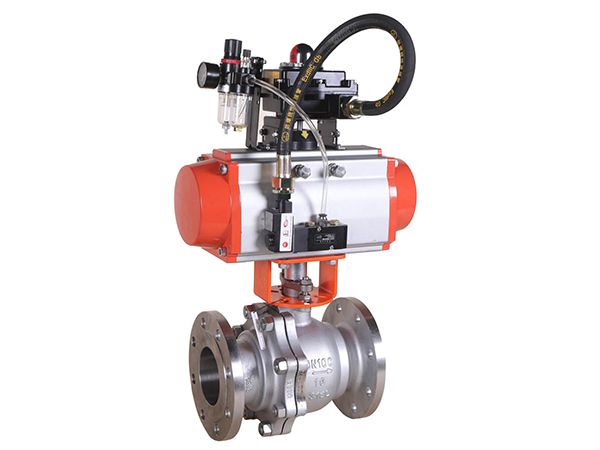

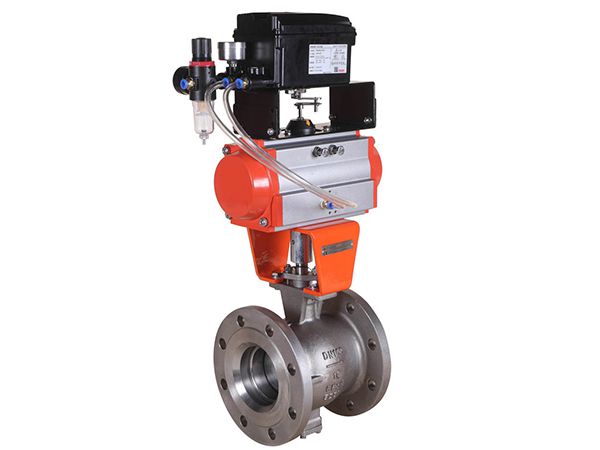

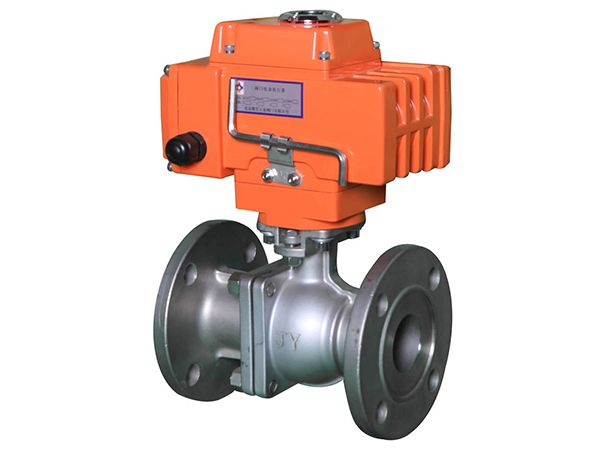

Control Ball Valve

Control ball valves have evolved from plug valves, with the closing element being a sphere. They achieve fluid control by rotating the sphere 90 degrees around the valve stem axis. Control ball valves are primarily used for cutting off, throttling, distributing, and changing the flow direction of media in pipelines.

Applications

Control ball valves can be used in water conveyance systems, seawater pipeline systems, gas pipeline systems, and weak acid-base transport systems.

Basic Information
Size Range
DN15-DN200
Temperature Range T
0-100℃
Maximum Allowable Operating Pressure PN
1.0-2.5Mpa
Pressure Rating
1.5-3.75Mpa (Shell)
1.1-2.75Mpa (Seal)
Applicable Media
Freshwater, seawater, air, weak acid-base, and so on.
Materials
No. Part Materials No. Part Material
1 Valve Body and Valve Bonnet CF8, CF8M, CF3, CF3M, WCB 5 Packing FTFE, Graphite
2 Valve Core CF8, CF8M, CF3, CF3M, WCB 6 O-Ring PTFE
3 Valve Seat FTFE, PPL 7 Bolts Stainless Steel, 35CrMoA
4 Valve Stem CF8, CF8M, CF3, CF3M, 2Cr13 8 Nuts Stainless Steel, 45#, 35CrMoA
Specifications
Specifications

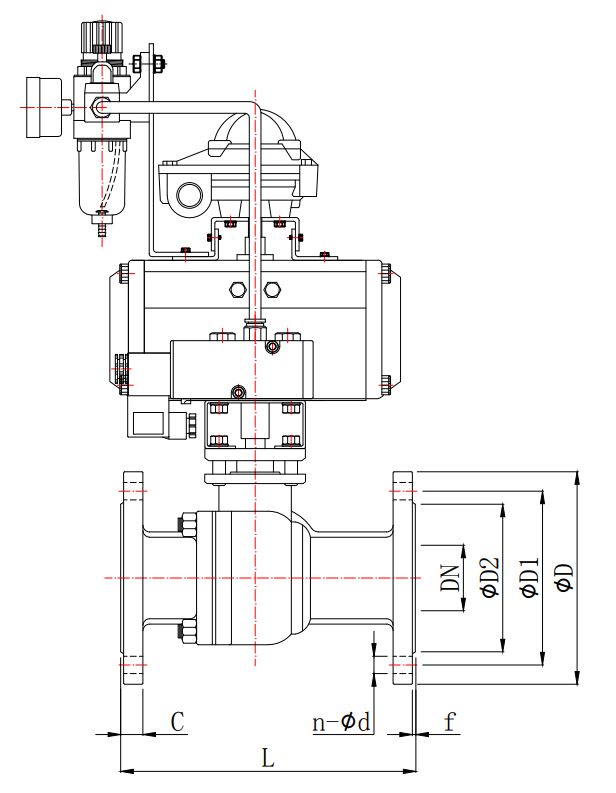

Size L ØD ØD1 ØD2 C f n-Ød
DN15 130 96 66 46 14 2 4-Ø14
DN20 140 106 76 64 14 2 4-Ø14
DN25 160 116 86 66 14 2 4-Ø14
DN32 166 136 100 76 16 3 4-Ø18
DN40 180 146 110 85 18 3 4-Ø18
DN50 200 160 126 100 18 3 4-Ø18
DN65 220 180 146 118 20 3 8-Ø18
DN80 260 196 160 132 20 3 8-Ø18
DN100 280 216 180 165 20 3 8-Ø18
DN125 320 246 210 186 22 3 8-Ø18
DN150 360 280 240 210 24 3 8-Ø22
DN200 400 336 296 266 26 3 12-Ø22
Certifications
Item Standard Optional Standard
Design & Manufacture GB12237 BS5351, ANSI B16.34
Face to Face Dimension GB12221-89 ANSI B16.10
Flange Connection JB/T-79 ANSI B16.5
Valve Test JB/T-9092 API598
