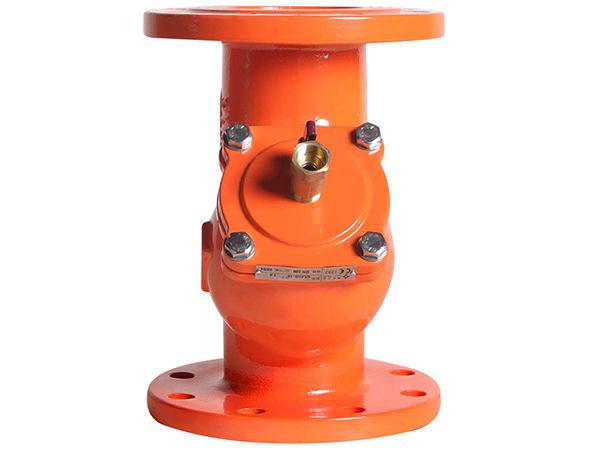

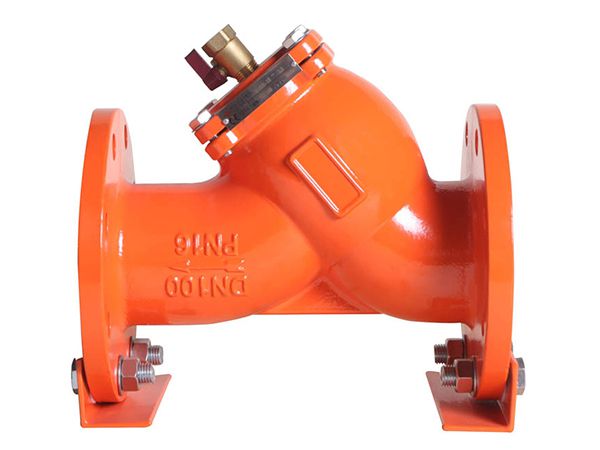

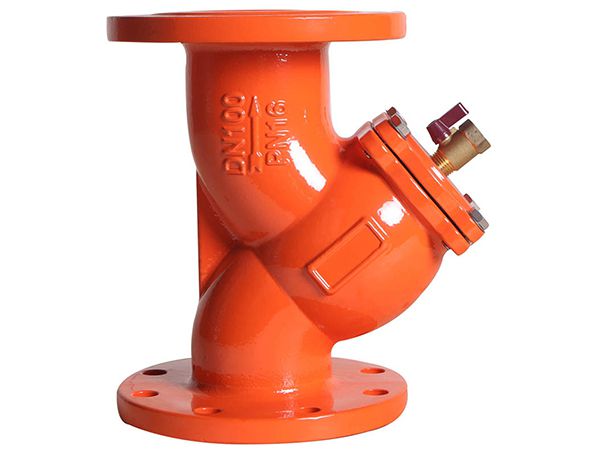

Y-type strainer is an indispensable filtration device in pipeline systems for transporting fluids. Y-type strainers are typically installed at the inlet of pressure reducing valves, pressure relief valves, level control valves, or other equipment to remove impurities from the medium, thus ensuring the normal operation of valves and equipment.

Basic Information
Size Range
DN20-DN600
Temperature Range T
0-100℃
Maximum Allowable Operating Pressure PN
1.0-1.6Mpa
Pressure Rating
1.5-2.4Mpa (Shell)
1.1-1.76Mpa (Seal)
Applicable Media
Hot water, sewage, seawater and so on.
Materials
No. Part Material No. Part Material
1 Valve Body QT450, WCB, CF8, CF8M 4 O-Ring EPDM, NBR, PTFE
2 Bonnet QT450, WCB, CF8, CF8M 5 Bolts 45#, Stainless Steel
3 Filter Stainless Steel 6 Plug 45#, WCB
Specifications
Specifications

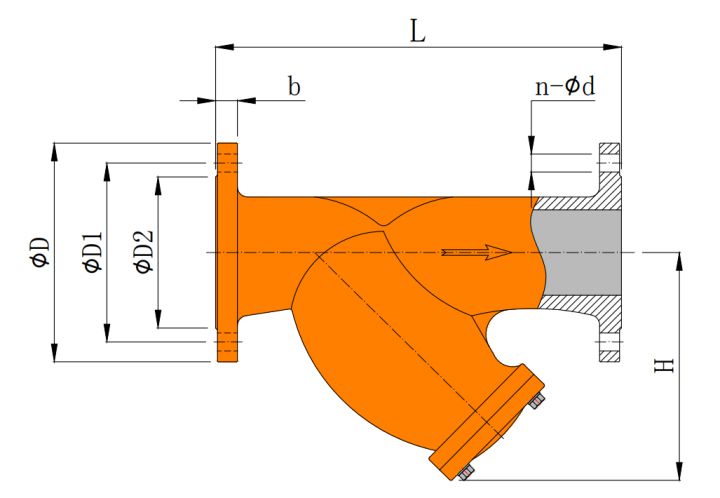

Size L H ØD ØD1 ØD2 b n-Ød
1.6Mpa 2.5Mpa 1.6Mpa 2.5Mpa 1.6Mpa 2.5Mpa 1.6Mpa 2.5Mpa 1.6Mpa 2.5Mpa
DN20 145 113 105 105 75 75 55 55 14 16 4-Ø14 4-Ø14
DN25 155 143 115 115 85 85 65 65 14 16 4-Ø14 4-Ø14
DN32 180 166 135 135 100 100 78 78 16 18 4-Ø18 4-Ø18
DN40 195 184 145 145 110 110 85 85 16 18 4-Ø18 4-Ø18
DN50 215 213 160 160 125 125 100 100 16 20 4-Ø18 4-Ø18
DN65 250 303 180 180 145 145 120 120 18 22 8-Ø18 8-Ø18
DN80 280 328 195 195 160 160 135 135 20 22 8-Ø18 8-Ø18
DN100 300 385 215 230 180 190 155 160 20 24 8-Ø18 8-Ø22
DN125 340 465 245 270 210 220 185 188 22 28 8-Ø18 8-Ø26
DN150 385 530 280 300 240 250 210 218 24 30 8-Ø22 8-Ø26
DN200 450 665 335 360 295 310 265 278 26 34 12-Ø22 12-Ø26
DN250 528 720 405 425 355 370 320 332 30 36 12-Ø26 12-Ø30
DN300 590 805 460 485 410 430 375 390 34 40 12-Ø26 16-Ø30
DN350 680 862 520 550 470 490 435 448 34 44 16-Ø26 16-Ø33
DN400 775 908 580 610 525 550 485 505 36 48 16-Ø30 16-Ø36
DN450 853 929 640 660 585 600 545 555 40 50 20-Ø30 20-Ø36
DN500 908 1000 705 730 650 660 608 610 44 52 20-Ø33 20-Ø36
DN600 1135 1200 840 840 770 770 718 718 48 56 20-Ø36 20-Ø39
Certifications
Item Standard
Design & Manufacture GB12238-89
Face to Face Dimension GB12221-2005
Flange Connection GB9113.1-2000, GB/T9119-2010
Valve Test GB/T13927-92
Valve Supply Requirements GB12220-89
Features
  • Advanced Structural Design: The Y-strainer boasts an advanced structure, low resistance, and convenient drainage.
  • Versatile Media Compatibility: Y-strainers are suitable for a variety of media, including water, oil, and gas. Typical mesh sizes are 18 to 30 for water, 10 to 100 for gas, and 100 to 480 for oil.
  • Simplicity and Reliability: Our Y-strainers are characterized by their simple structure, high reliability, easy disassembly and assembly, as well as straightforward cleaning and maintenance.
  • Diverse Filter Mesh Options: With a wide range of filter mesh specifications, Y-strainers can meet the filtration requirements of different situations and media. They are cost-effective and have a long service life.
