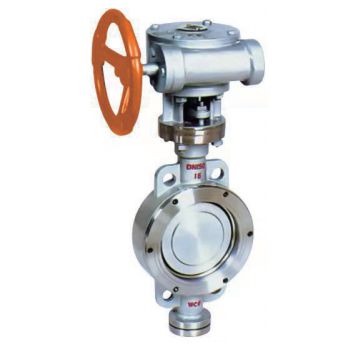

Metal Seated High Performance Butterfly Valve

Applications

Metal seated high performance butterfly valves can be used in water conveyance systems, seawater pipeline systems, and gas pipeline systems.

Basic Information
Size Range
DN50-DN1200
Temperature Range T
0-150℃
Maximum Allowable Operating Pressure PN
1.0-1.6Mpa
Pressure Rating
1.5-3.75Mpa (Shell)
1.1-2.75Mpa (Seal)
Applicable Media
Freshwater, seawater, air, and so on.
Materials
No. Part Materials No. Part Material
1 Valve Body and Valve Bonnet CF8, CF8M, CF3, CF3M, WCB 6 Packing FTFE, Graphite
2 Valve Disc CF8, CF8M, CF3, CF3M, WCB 7 O-Ring PTFE
3 Valve Stem CF8, CF8M, 2Cr13 8 Bolts Stainless Steel, 35CrMoA
4 Valve Stem Nuts Aluminum Bronze 9 Nuts Stainless Steel, 45#, 35CrMoA
5 Gland CF8, CF8M, CF3, CF3M, WCB 10 Valve Handwheel WCB
Specifications

(under the pressure of 1.6 Mpa)

Specifications

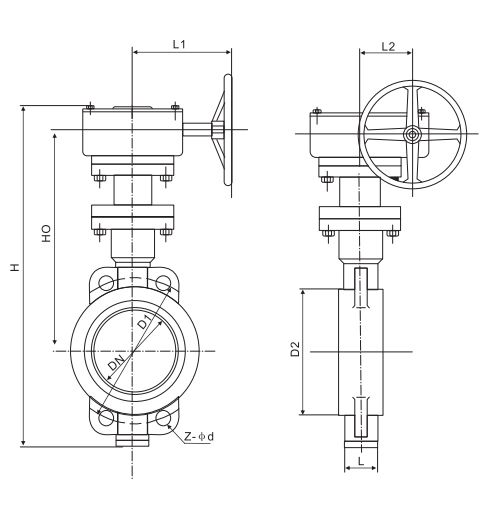

Size L ØD ØD1 ØD2 c n-d0 W H
DN15 130 95 65 45 16 4-Ø14 120 220
DN20 150 105 75 55 16 4-Ø14 140 255
DN25 160 115 85 65 16 4-Ø14 160 275
DN32 180 135 100 78 18 4-Ø18 180 280
DN40 200 145 110 85 18 4-Ø18 200 300
DN50 250 160 125 100 18 4-Ø18 240 358
DN65 265 180 145 120 18 8-Ø18 240 375
DN80 280 195 160 135 20 8-Ø18 280 433
DN100 300 215 180 155 22 8-Ø18 320 502
DN125 325 245 210 185 24 8-Ø18 360 612
DN150 350 280 240 210 24 8-Ø22 360 676
DN200 400 335 295 265 26 12-Ø22 400 820
DN250 450 405 355 320 30 12-Ø26 450 969
DN300 500 460 410 375 30 12-Ø26 560 1142
DN350 550 520 470 435 34 16-Ø26 640 1280
DN400 600 580 525 485 36 16-Ø30 640 1452
DN450 650 640 585 545 40 20-Ø30 720 1541
DN500 700 705 650 608 44 20-Ø33 720 1676
DN600 800 840 770 718 48 20-Ø36 800 1874
DN700 900 910 840 788 50 24-Ø36 800 2083
DN800 1000 1020 950 898 52 24-Ø39 950 2400
DN900 1100 1120 1050 998 54 28-Ø39 1000 2950
DN1000 1200 1255 1170 1110 56 28-Ø42 1000 3245
DN1200 1300 1485 1390 1325 58 32-Ø48 1100 3850
Certifications
Item Standard Operational Standard
Design & Manufacture GB12234 API600, ANSI B16.34
Face to Face Dimension GB12221-89 ANSI B16.10
Flange Connection JB/T-79 ANSI B16.5
Valve Test JB/T-9092 API598
Features
  • High-Temperature and High-Pressure Performance: Metal seated high performance butterfly valves use metal sealing materials such as stainless steel and alloys, providing excellent performance in high-temperature and high-pressure applications.
  • Corrosion Resistance: Metal sealing materials typically have strong corrosion resistance, reducing the risk of leaks and corrosion.
  • Long Service Life: Due to the durability and wear resistance of metal sealing materials, metal seated butterfly valves typically have a longer service life, reducing maintenance and replacement frequency.
